Export existing pipeline to code

Overview

Instead of constructing your pipeline from scratch, you could try to use our advanced feature export-to-code in Azure Machine Learning designer.

With this feature, you can export your existing pipeline drafts, pipeline runs, pipeline endpoints and published pipelines to pure component sdk codes in both python or jupyter notebook format. The exported codes will fully restore your pipeline’s functionality, structure and configuration, you can continue to iterate your pipelines from there.

[Command line] Export existing pipeline to code

Supported scenarios

  • export pipeline run

  • export pipeline draft

  • export pipeline endpoint

  • export published pipeline

Sample

  • Copy url of an existing pipeline run.

  • Run az-ml export --url COPIED_URL to export the pipeline to code.

    • Get all components’ snapshot along with the graph, run az-ml export --url COPIED_URL --include-components "*"

    • Get some components’ snapshot, run az-ml export --url COPIED_URL --include-components "azureml:train:0.1,azureml:anonymous-component-guid"

    • Export to specific path, run with --path, by default we will export a folder with pipeline run/draft/endpoint name in current directory.

    • When same pipeline got exported multiple times, new folder with auto incremental suffix will be created.

    • Specify --debug to get more debug info.

  • The generated code structure looks like this:

    • .azureml folder: the workspace used in current pipeline.

    • components folder: all components(and snapshots) used in current pipeline.

    • pipelines/subgraphs folder: all sub graphs used in current pipeline.

    • pipelines/xx.py file: the root pipeline.

    • run.py file: entry to run current pipeline.

  • Resubmit the generated code, run python run.py inside the generated folder.

  • Validate the generated code, run python run.py -v inside the generated folder.

All command line options to generate code:

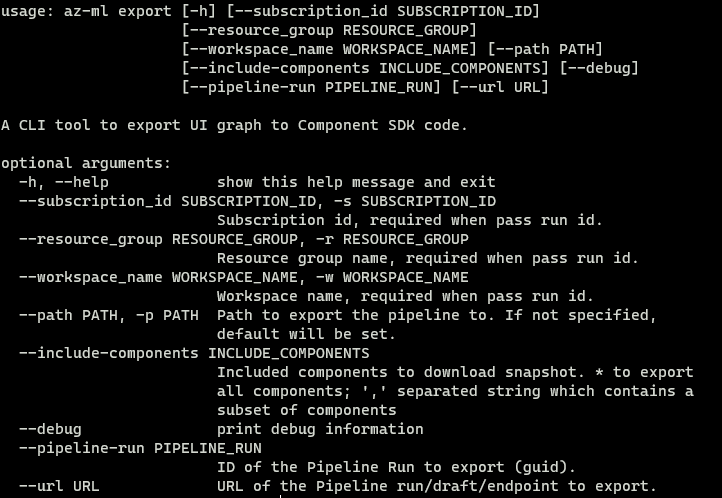

image-20220128142130954

All command line options for the generated entry script:

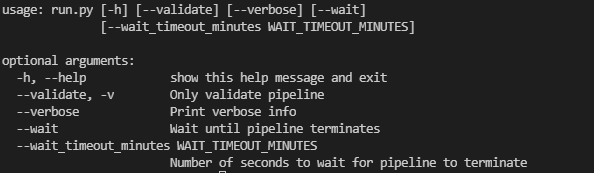

image-20211224193214178

Limitations

Currently command line graph to code has some limitations:

  • Pipeline parameter as runsetting parameter is not supported. Using pipeline parameter as runsetting is only supported in submission time, the submitted graph do not have the mapping information to connect runsetting and pipeline parameters. The runsettings linked with pipeline parameter will be replaced to literal value when exporting graph.

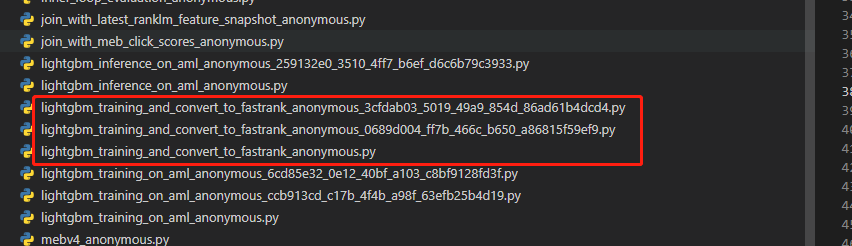

  • Sub pipelines created from same definition might be exported multiple times. This is also a submission time issue, currently SDK may register same sub graph multiple times and get multiple sub graph instance for same sub graph definition. Exporting a graph with multiple same sub pipelines will give each sub pipeline a unique name like this:

    image-20220104201149090

[Portal UX]Export existing pipeline to code (deprecated)

Supported scenarios

We will not export the configurations which were configured by the default value in order to make the export codes clean.

  • export pipeline draft

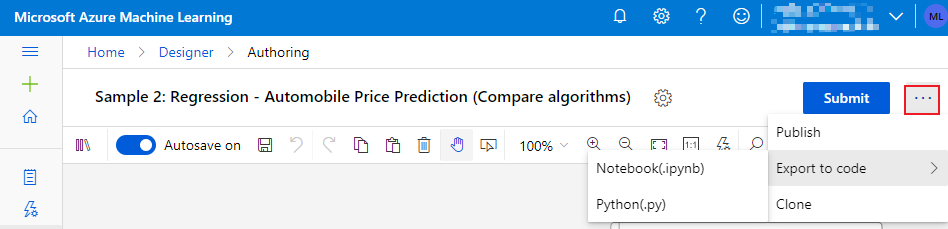

    export-draft

  • export pipeline run

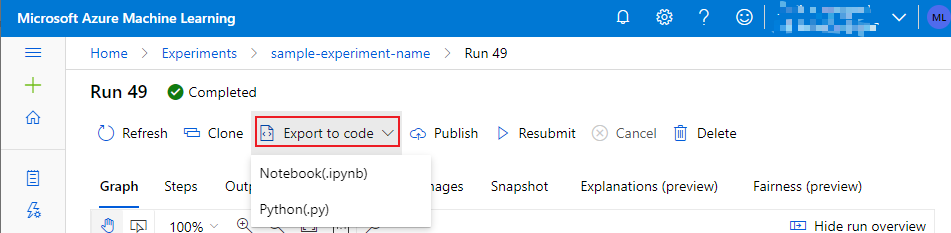

    export-run

  • export pipeline endpoint

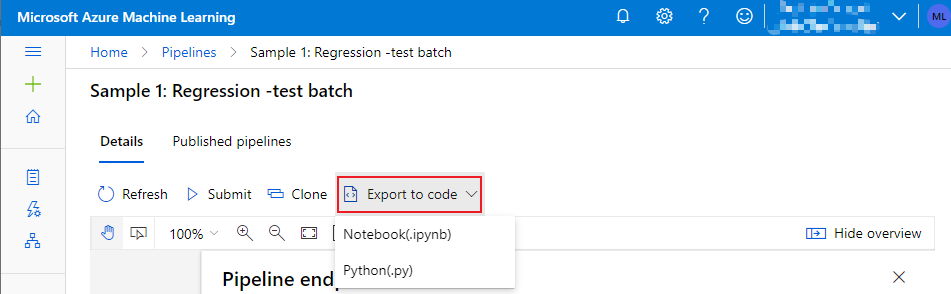

    export-endpoint

  • export published pipelines

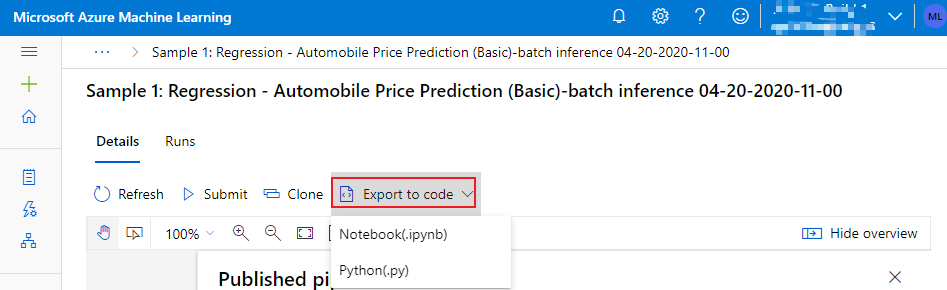

    export-published-pipeline

Sample

Let’s take the sample pipeline draft ‘Regression - Automobile Price Prediction (Basic)’ as an example to see what are the exported codes.

  • Create the sample pipeline draft from designer portal.

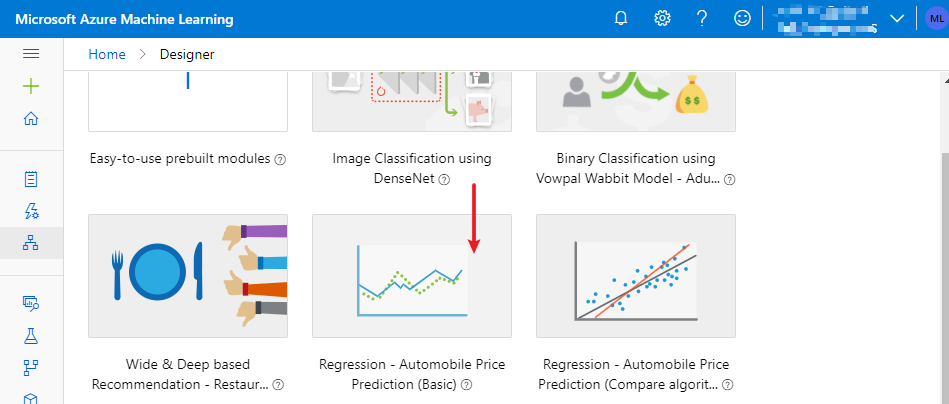

    create-sample-draft

  • Configure compute target for the draft.

    if you don’t configure compute target here, the exported codes will also have no compute target configured, you will have to configure it with sdk code manually

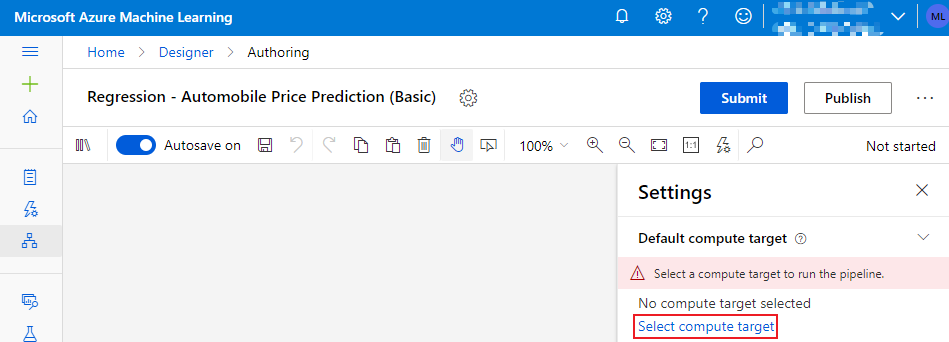

    configure-compute

  • Export the draft in python format

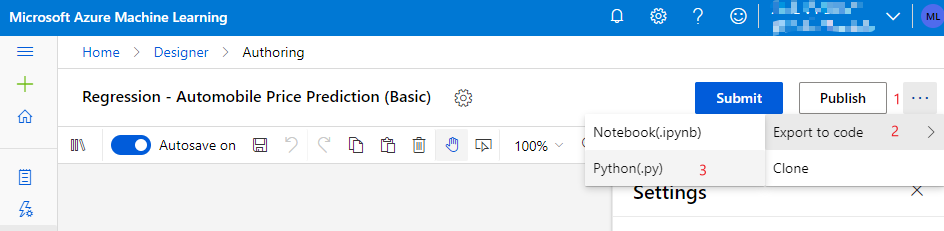

    export-draft-sample

  • After click the button, the exported codes will be automatically downloaded to your local machine as a zip file, named by the draft’s name.

    downloaded-zip

  • Extract the zip file, you will see:

    extracted-zip

    • __int__.py (only applies for python format export)

      This file makes the exported codes as a package and your pipelines as separate python module, so that you can import your pipelines as python module outside.

    • config.json

      This file configures your workspace.

    • regression_automobile_price_prediction_basic.py

      This file contains the sdk codes of your pipeline.

      If you are exporting the pipeline in notebook format, you will get regression_automobile_price_prediction_basic.ipynb instead.

    • If your pipeline consist of multiple subpipelines and was saved/submitted using component sdk, your subpipelines will also be exported as separated python files.

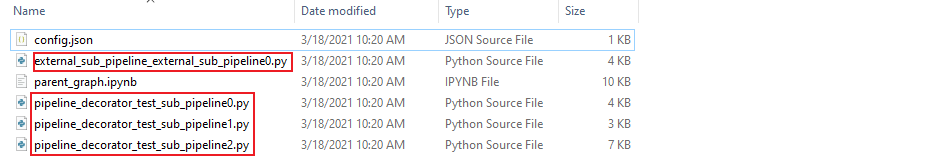

      subpipelines

Note

The export-to-code feature is in preview stage and only available in Microsoft internal subscription.
