Define components with python function

Overview

Define component using python function make it easier to iterate quickly by letting you build your component code as a python function and generating the component specification for you. In this document, we will demonstrate how to define components and consume them with python SDK.

Supported type	Status	Decorator	Note
Command Component	Preview	dsl.command_component
Distributed Component	Preview	dsl.command_component	Specify metadata with `distribution`.

Define component

Refer to fields in component specification YAML, the necessary fields of a component when using python SDK include two parts: metadata and interface.

# Metadata: defined in decorator
@dsl.command_component(description='a+b')
# Interface: defined by function parameter
def sum_func(a: int, b: int):
    print(a + b)

Metadata

Metadata is declared on dsl component decorator, all accessible fields are listed in the table below.

Field name	Type	Description
name	str	The name of the component. If None is set, function name is used.
description	str	The description of the component. If None is set, the doc string is used.
version	str	Version of the component, default `0.0.1`
display_name	str	Display name of the component.
is_deterministic	bool	Specify whether the component will always generate the same result. The default value is None, the component will be reused by default behavior, the same for True value. If False, this component will never be reused.
tags	dict	Tags of the component.
environment	Union[str, pathlib.path, dict, azure.ml.component.Environment]	Environment config of component, could be a yaml file path, a dict or an Environment object. If None, a default conda with 'azureml-defaults' and 'azure-ml-component' will be used.
code	str	The source directory of dsl.component, with default value `'.'`. i.e. The directory of dsl component file.
distribution	dict	Only for Distributed component, e.g. `distribution={'type': 'mpi'}`. All available types are `mpi`, `Pytorch`(or alias: `torch.distributed`).

Interface

Interface is defined by the decorated function. Inputs, outputs and parameters are declared by specific annotations as listed below.

Parameter Type	Annotation
Input	azure.ml.component.dsl.types.Input
Output	azure.ml.component.dsl.types.Output
Parameter	int, str, bool, float or any other types in azure.ml.component.dsl.types except Input and Output

Sample

The sample below demonstrates how to define a dummy train component.

from pathlib import Path
from uuid import uuid4

from azure.ml.component import dsl
from azure.ml.component.dsl.types import Input, Output, Float

@dsl.command_component(
    name='train_component',
    description='A dummy train component defined by dsl component.',
    version='0.0.1',
    # specify distribution type if needed
    # distribution={'type': 'mpi'},
)
def train_component_func(
    training_data: Input,  # define a input port
    max_epochs: int,  # define a parameter with annotation
    model_output: Output,  # define an output port
    learning_rate: Float(min=0.01, max=0.5) = 0.1,  # define a parameter with default
):
    # do the train and save the trained model as a file into the output folder.
    # here only output a dummy data for demo.
    model = str(uuid4())
    (Path(model_output) / 'model').write_text(model)

Consume component

After define the component function, it can be used directly to create components.

Sample

Let’s see how to consume the train_component_func defined above in dsl.pipeline.

# define a dsl pipeline function
@dsl.pipeline(description='train model', default_compute_target='aml-compute')
def training_pipeline_func(input_data, learning_rate):
    train = train_component_func(
        training_data=input_data,
        max_epochs=5,
        learning_rate=learning_rate)
    return train.outputs

# create a pipeline instance
pipeline = training_pipeline_func(input_data=your_dataset, learning_rate=0.01)

# validate and submit the pipeline
pipeline.validate(workspace=your_workspace)
pipeline.submit(workspace=your_workspace)

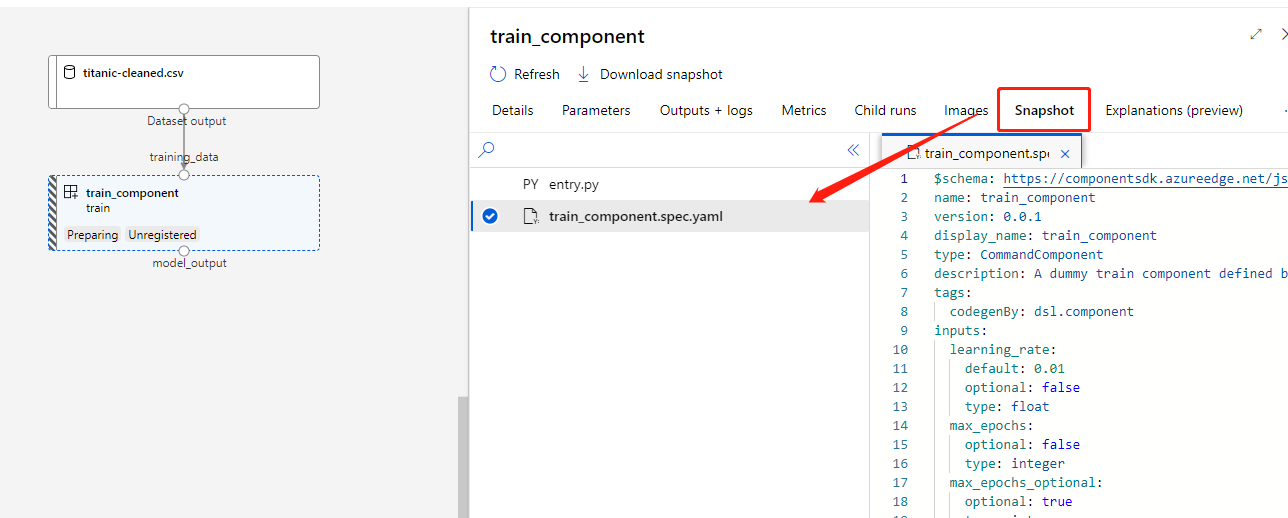

The component snapshot and the generated YAML spec can be found in the pipeline run detail page.

dsl-component-snapshot

Be aware that you can not pass value to Output types of parameter, which is same as the function returned by Component.from_yaml.

Manage component

The dsl component function can be registered explicitly in your workspace.

Sample

The example below shows how to load or register dsl component function.

component_name = 'train_component'
component_version = "0.0.1"
try:
    # load dsl component with name and version
    registered_train_component_func = Component.load(
        my_workspace, name=component_name, version=component_version
    )
except Exception:
    # register the dsl component
    registered_train_component_func = Component.create(
        train_component_func,
        version=component_version,
        set_as_default=True,
        workspace=my_workspace,
    )

The registered components can be found when using CLI list/show.

Next steps

Learn more about dsl components with our example Jupyter notebook how-to-use-dsl-component.
